The Bathysphere stove

Large vertical stove manufactured in heavy iron plate. Fuels include timber, coal & peat, heat output is upwards from 10KW

Featuring:

Clean burn, Ash drop mechanism, A large firebox, Multifuel

Options include:

Boiler - Integral or coaxial stack, Stainless steel construction

Design/Spec

A large stove constructed from polished and refractory grade stainless steel, dimensions 500 x 500 x 1000mm high approx weight 50KG

Includes a removable hotplate for cooking & top-loading. Controls for air inlet is the bar within the circle between the legs. Flue control at the front centre of chimney.

The design has an advanced gas/air heat exchanger, is fully clean burn with double combustion tech and is a living centrepiece of living rooms & studios both home & abroad.

Options:

Central Heating boiler

Scalable up or down

Bronze

A suspended stove

Design/Spec

A large stove constructed from polished and refractory grade stainless steel, dimensions 500 x 500 x 1000mm high, approx weight 50KG

Controls for air inlet is between the front legs. Flue control at the front centre of chimney.

The design has an advanced gas/air heat exchanger, is fully clean burn with double combustion tech and is a living centrepiece of living rooms & studios both home & abroad.

Options:

Central Heating boiler

Scalable up or down

Bronze

‘Chrome’ version for indoors & ‘Atlantic wasp’ Marine.

A tiny burner weighing only 12KG and made entirely from 316 grade stainless steel which remains stable in a salty environment, ideal for a small / medium sized room, living vehicles, shepherd huts, yurts, boats etc incorporating all the latest technologies; Airwashed glass, clean burn, stove plate body & stainless steel firebox with super-efficient burn.

Note: ‘Atlantic’ version has additional features for saltwater sailing ships such as lockable hob and multifuel grate - See also ‘Kapitan’ purpose built for yachts.

Dimensions 300L x 250W x 375mm High, Output 2-4KW. Total weight 12KG

This has a removable recessed hob so flames are directly under kettle etc, (boils in less than 5 mins) and very accurate heat control for general cooking. When the controls are set to low heat output the stove will give a genuine overnight burn with a good fill of firewood.

The Hornet

A medium sized burner based on 'Queen Wasp' stove, ideal for a medium / large sized room, yurts, boats etc incorporating all the latest technologies; Airwashed glass, clean burn, thick boiler plate body & stainless steel firebox with super efficient burn.

This serves as a general purpose cooker/heater and keeps in overnight on one fill.

Dimensions, 420 x 500 x 550mm high, the output can be calibrated to between 5 to 8KW depending on installation space.

The 10mm thick hotplate extends over the stove body & has a removable recessed hob so flames are directly under kettle etc, (boils in less than 5 mins).

Options - chrome door & trim, C/H boiler, lightweight all polished stainless version

A large, heavy duty burner made from rolled and welded iron plate…

Mulifuel 10-15KW, Size 600 x 600 x 1300H, approx 100KG, cleanburn with ash drop mech and airwash.

Options - Stainless steel, boiler & custom size up to 2 metres high....

Rocket stoves in Stainless Steel.

These units incorporate clean burn technology and are able to burn a number of fuels including coal, peat and timber. Output from 5-100KW (size dependent).

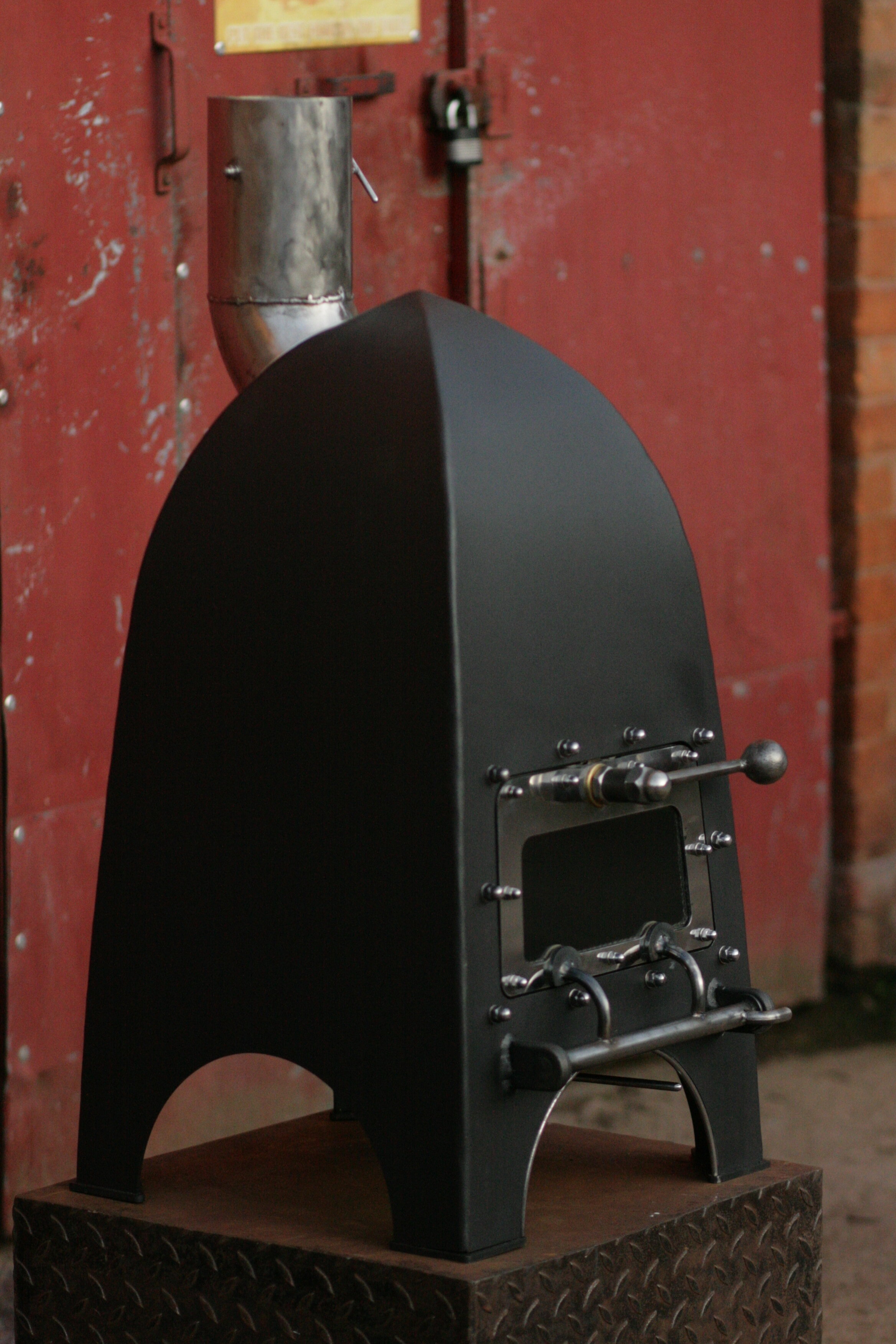

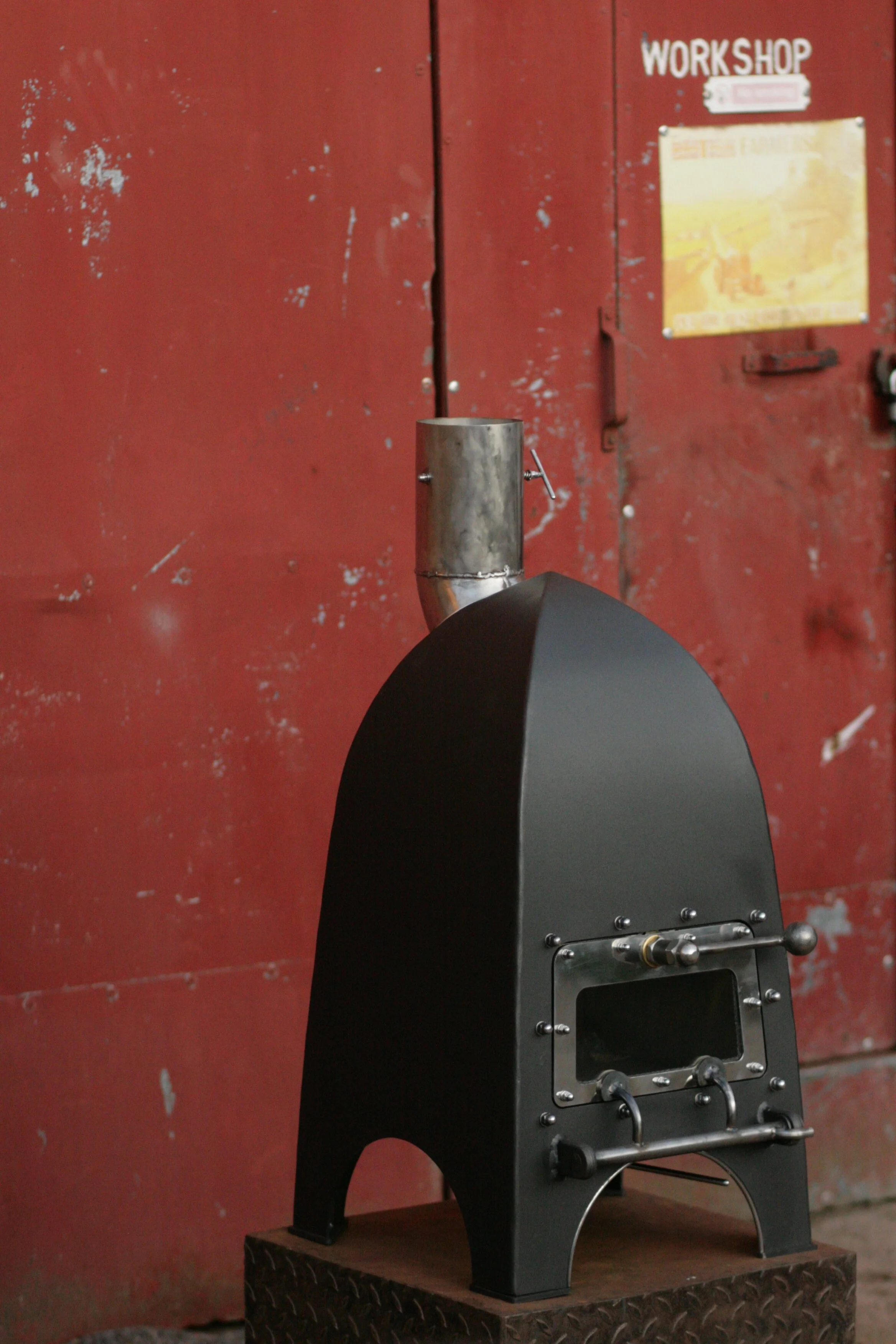

Iron Rocket version 840 in heavy boiler plate. 8KW.

These units incorporate clean burn technology and airwash.

Heat output up to 50KW (size dependent) and available from 600 - 2000mm high. Width is half the height.

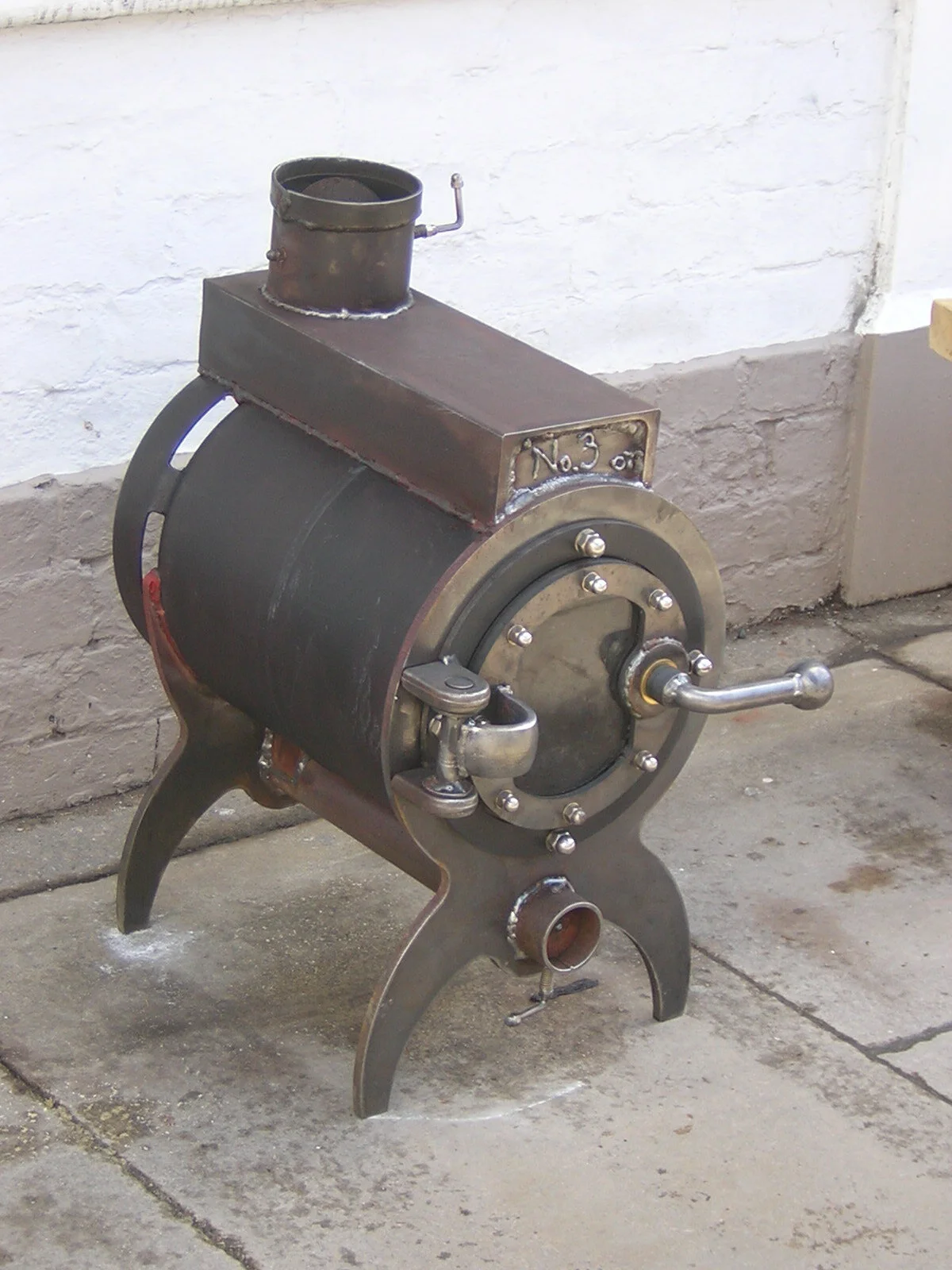

A new design partly made from 'found' materials, body constructed using an old LPG gas bottle. This stove uses the latest clean burn technology.

The inlet air entering via the butterfly valve at the base is pre- heated and blasted down at the fuel past the glass on the door. Burn rate/output is controlled by air & exhaust valves.

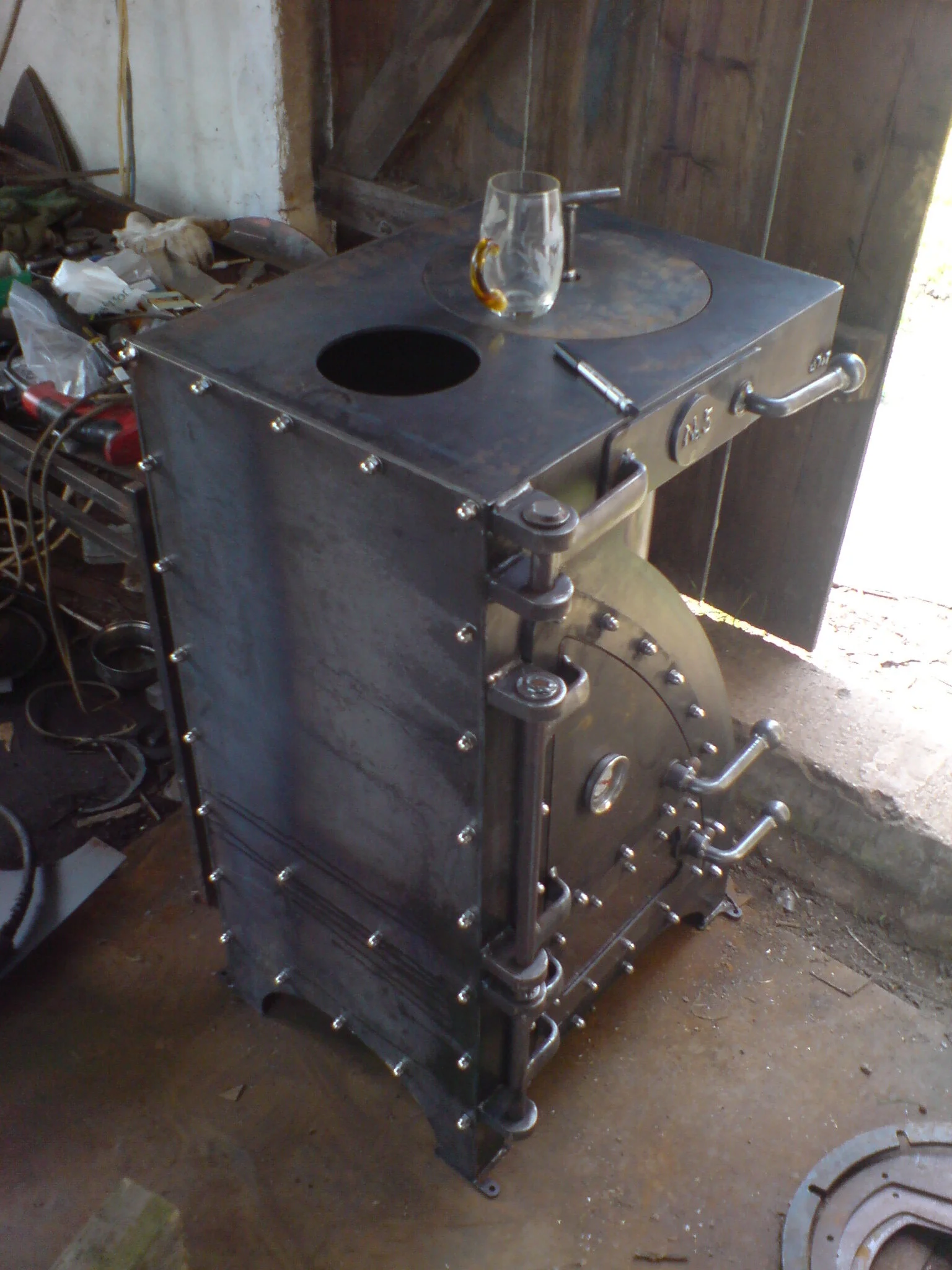

A Multifuel Stove / Range which can cook, bake, smoke & central heating...

Clean burn with airwash.

Max output 6-8KW constructed from heavy plate steel, the stove can be dismantled by removing the side plate, the external flue on RH side directs hot gases onto the underside of the hotplate, a control on RH side balances the heat output between oven & hotplate.Also shown in LH plate a coaxial stack boiler fabricated in stainless steel. The smoking chamber is above the oven.

This design is also available in polished stainless steel.

Dimensions - 600w x 450d x 1000mm high

Weight approx 100KG

'Skizinal' an extreme skiing lodge run by Penny & Eric Kendal commissioned me to build a rather special fireplace, a centrepiece in what was previously a hotel situated at the base of one of the ski runs.

The construction is a glass enclosed stainless crucible containing the fire.This features cleanburn technology and has an airwash for its surrounding walls. The crucible or plinth is hollow and air is fed up underneath it from outside the building where it heats up and is fed through internal supporting pillars to ducting that blows the preheated air back down across the viewing panels. The hot combustion gases rise into a void above the hearth which is a complex gas/air heat exchanger with ducting to take heat all around the upper floors and staircases.

The 'L' shaped glass door in the lounge side runs on heatproof linear bearings up inside the wall and is counterbalanced by a big steel counterwight suspended by wires & pulleys on the right hand side of the assembly and hidden behind a plastered false wall. To the rear of the hearth there is a secondary window allowing views of the fire from the hallway.

Dimensions 1 x 1.5 x 2.2H metres

Sliding door 600 x 1000 x 600H mm

Hall window 1000 x 500H mm

A very heavy duty Stove constructed from iron plate and refractory grade stainless steel, popular dimensions 500 x 500 x 650-750mm high

All include a removable hotplate. Controls for air inlet is the sliding bar below window. Flue control at the rear left of chimney.

The design has an advanced gas/air heat exchanger, is fully clean burn and is a living centrepiece of living rooms & studios both home & abroad.

Options

Central Heating boiler

All polished stainless construction

Scalable up or down

A small burner weighing only 15KG and made entirely from corrosion proof parts. Designed for sailing yachts and boats from 30ft, it features: Fiddle rail, Airwashed glass, clean burn, cooking plate & super efficient burn with separate controls for air in & flue out.

Dimensions 300L x 300W x 300mm High, Output 2-5KW. Total weight 13KG (not including mounting plate)

In use

The stove has a removable recessed hob with a 200mm deep cooking area (boils kettle in less than 5 mins) and very accurate heat control for general cooking. When the controls are set to low heat output the stove will give a genuine overnight burn with a good fill of fuel.

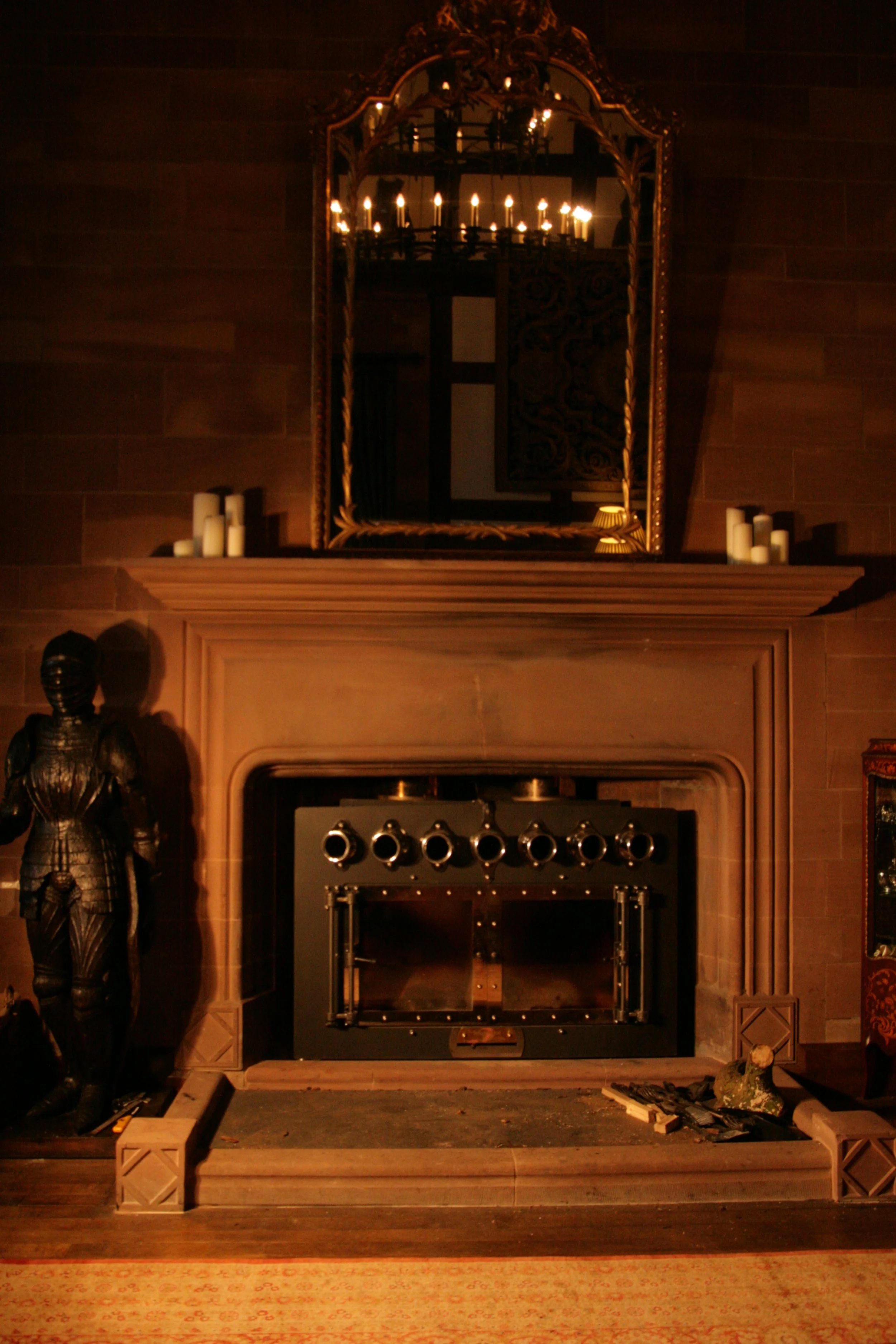

300KG worth of triple burn industrial might, currently installed in a castle keep…Seven trumpet mouthed convector tubes are directly heated by flames within…
